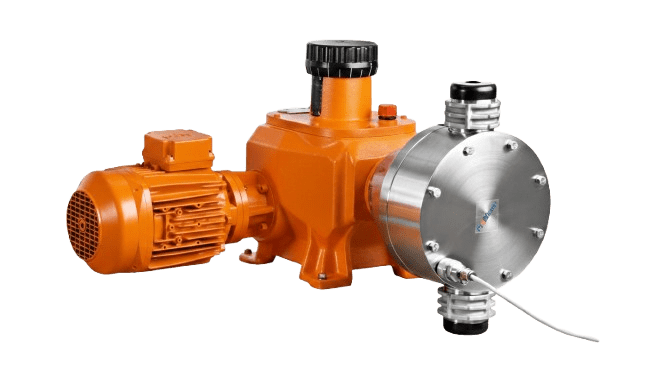

MAKRO TZMb diaphragm metering pump
Capacity range for single-head pump: 260 – 2100 l/h, 12 – 4 bar
The modular design of the MAKRO TZMb diaphragm metering pump with adjustable eccentric drive mechanism and mechanically deflected multi-layer safety diaphragm allows it to be uniquely adapted to the performance requirements of the respective application.
The modular design of the MAKRO TZMb diaphragm metering pump with adjustable eccentric drive mechanism and mechanically deflected multi-layer safety diaphragm allows it to be uniquely adapted to the performance requirements of the respective application.
- Capacity: 260-2100 l/h
- Maximum pressure: 12-4 bar
Technical performance & reliability
Measurement Reproducibility: Better than ± 2% within the 30–100% stroke range.
Robust Construction: Features an oil-filled bearing bracket and a very high shaft force of 8000 N for heavy-duty cycle reliability.
Control Options: IEC standard motors with output signals (4-mA / PLC) and optional spring-loaded return mechanisms.
Protection: Rated IP 55 for challenging environments.
Applications
- Water treatment
- Wastewater
- Chemicals
- Hapiks
- Bentonite
- Lime milk
- Polymer
- Dyes
- Glues
- Oils
- Plant glues, Gluten
- Polymers
- Cleaning agent
Solvent/Nutrient
(does not apply to hydraulic diaphragm dosing pump)
- Dairy products
- Wine
- Fruit juice
- Meat products
- Sauces
Technical details
- IEC standard motor
- Oil-filled bearing bracket
- Optional spring-loaded return or not
- Output signal 4-20mA / PLC

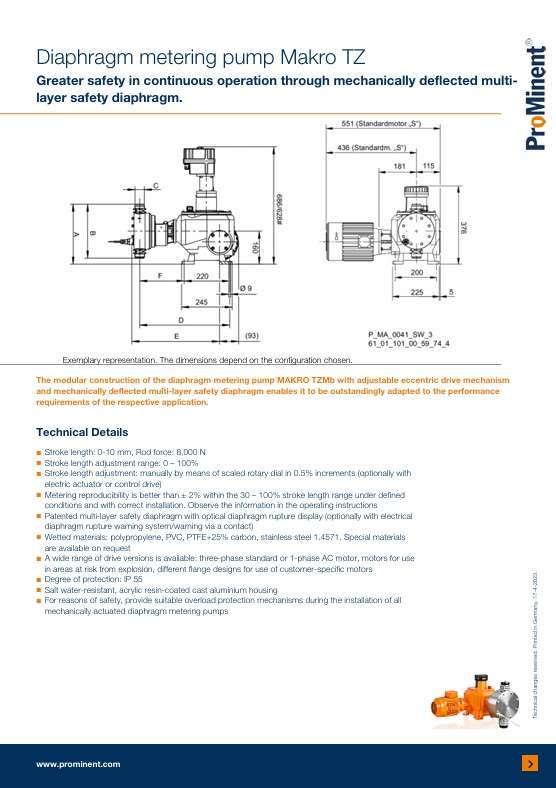

Download brochures
