category - pumper
Peristaltic Dosing Pumps
Bransjer og bruksområder
Pålitelighet er kjernen i designet takket være en pakningsløs og ventilløs konstruksjon. Dette eliminerer vanlige feil som oppstår i membranpumper, for eksempel damplås eller tilstopping ved håndtering av kjemikalier som avgir gass, som natriumhypokloritt. Pumpene er selvsugende og tåler tørrkjøring over tid, noe som sikrer driftssikkerhet selv under krevende forhold. Vedlikeholdet er unnagjort på sekunder, ettersom slangen er den eneste delen i kontakt med væsken og kan byttes helt uten verktøy.

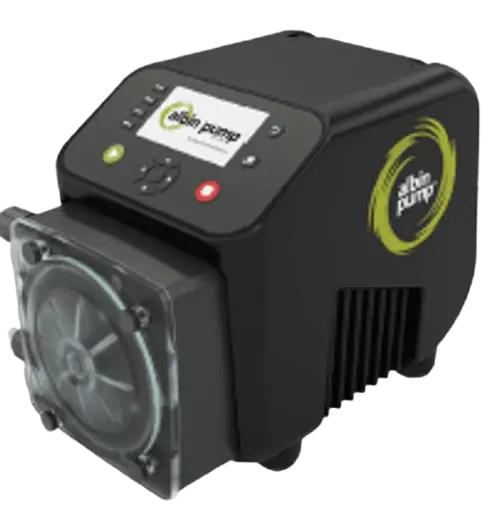

RT Series | Peristaltic Metering Pumps
The NEW RT Series peristaltic pump has been carefully designed to maximize performance while minimizing maintenance costs and environmental impact.
Maintenance is simple and safe:
- Fully sealed, replaceable tube elements can be changed quickly
- The pump head enables safe release of chemicals, protecting employees and the environment
- Consumable parts cost significantly less than cartridge replacements
Simple, sustainable, and environmentally friendly chemical dosing Model: RT2, RT3, and RT4 Qmax.: 120 lph Working pressure: 4.1 bar Focus Municipal Market Turndown 10,000:1 NSF-61 Yes Warranty 5 years Applications Sodium hypochlorite polymers Caustic/sodium hydroxide Polyaluminium chloride Fluoride pH and odor control Ferric chloride Sampling pumps

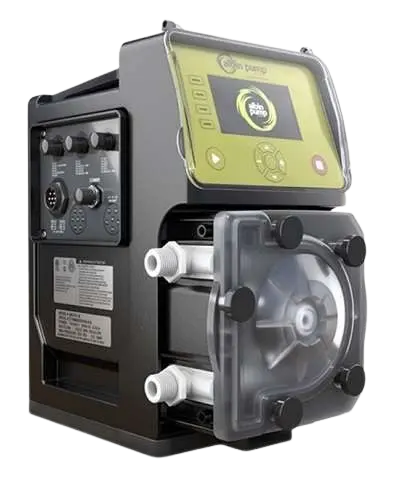

KM Serie
4.33-inch LCD color display
Remote inputs and outputs available: 4–20 mA, frequency, and 10 VDC
Industrial protocols available
3 digital inputs with dry contact
Built-in operating hours for predictive maintenance
Equipped with USB port for firmware upgrades and pump history uploads
4 programmable Form-C output relays
Can handle flows up to 600 lph (158.5 gph) and pressures up to 8.6 bar (125 psi)
Pipe fittings are interchangeable with some competing models
Capacity:
Q: Up to 600 lph
Working pressure: Up to 8.5 bar Temperature: 80C
Enclosure rating - IP66/NEMA 4X
Turndown ratio - 2500:1
Control options - SCADA, Modbus TCP/IP, Modbus RTU
Power requirements 115/230V, 50/60 Hz, 1 phase
Motor - BLDC
LAB- M Pumps
Can preset dispensing volume, dispensing time, pause time, copy count, and suction angle. Dynamic display of working status, dispensing data, setting parameters, and system configuration on the same screen. Intelligent calibration functions
The tube clamp's coupling mechanism makes it more convenient to
install the tube.
The friction wheel adjustment mechanism can easily fix different
sized tubes.
Cap: 0000166 – 2280 mL/min
M6-12L Basisk peristaltisk pumpe
Mechanical keypad control for start/stop, direction, time test, and external control selection.
Rotary encoder knob controls speed or rapid filling, easy to operate
Application: Industrial production, pilot tests, fluid transfer
Flow rate: 0.69-12000 mL/min
Lab Q Kompakt peristaltisk pumpe
Digital rotary knob is convenient for speed control and easy to operate.
Various external control functions, supports 0-5V, 0-10V, 4-20mA analog signals to control speed.
Power-off memory function, save parameters in time, safe and reliable.
Flowrate: 0.0033-326.55 mL/min
EXP Explosion-proof peristaltic pump
Stepless speed control, speed adjustable manually.
High performance, stable flow rate, high torque and low noise, suitable for various pump heads and hoses.
Can run continuously for long periods of time, easy to maintain.
Flowrate: 0.0033-326.55 mL/min
Norditech - V6-N3L
Customized multi-channel peristaltic pump, up to 48 channels. Please contact us for customization.
Flowrate: 0.0033- 65.17 mL/min
Area of application
- Ink cartridge refilling
- Spray painting machine

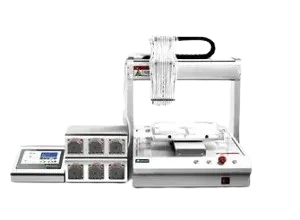

Oem products - biotek
Designed to meet your needs
Using the three-coordinate mechanical arm form, you can edit the operation track of the manipulator arm according to the container and the amount of non-specification. Implement rapid automatic liquid separation
Scope of application
Industrial application of biological reagents, small microporous plate liquid filling, automatic equipment, etc.
Norditec - Refill nozzle
Model No: Filling Nozzle
Category: Accessories
Flow Rate: According to customer's request
Product Features
The outlet end is closed, which can effectively prevent liquid splashing.
The reducing filling nozzle can effectively prevent liquid spillage.
Made of 316 stainless steel, anti-rust, strong corrosion resistance, high degree of hygiene.
Industry Application
Simply insert the coupling into the hose until it fits tightly (if the flow rate is high, it can be used with the strip)
Norditec - Accessories
Couplings
– Tubes
Industries and applications
- Water and sewage: Quick couplings for mobile bilge and slurry pumps.
- Chemical industry: Safe transfer of acids and solvents using chemical-resistant composite hoses.
- Food and beverage: Hygienic transfer of milk, beer, and concentrates.
- Logistics: Loading and unloading of tank trucks.
