Category - pumps
Industrial long shaft and high pressure pumps
Reliable solutions for aquaculture, fire protection, and large-scale water supply
Propeller pumps: Capacity up to 2000 m³/h
Vertical turbine: Lifting height up to 400 mvs
Fire equipment: Compliant with NFPA, UL, FM, and EN 12845
High-pressure multistage performance
Our multistage centrifugal pumps are designed for pressure boosting, chemical handling, and petroleum products. Featuring hydraulically and statically balanced closed impellers, these units can handle contaminants while reaching heights of 350 mvs.
Series ZPN – ZPS (Propeller pumps)
- Applications: Large water supplies, power plants, industry, and fisheries.
- Capacity: Up to 2000 m³/h | Lifting height: Up to 100 mvs.
- Features: Standard cast iron with bronze or stainless steel options; speeds from 750 to 1800 rpm.
Series ZS – ZSR (Single-channel centrifugal)
- Applications: General utilities and water supply.
- Capacity: Up to 400 m³/h | Lifting height: Up to 90 mvs.
- Design: Available with closed or semi-open impellers.
Series ZN (End suction pumps)
- Capacity: Up to 400 m³/h | Lifting height: Up to 100 mvs.
- Details: Standardized industrial design for reliable water transfer.
Series ZCP (Split case pumps)
- Capacity: Up to 30 m³/h | Lifting height: Up to 110 mvs.
- Design: Axially split casing for easy maintenance and high-pressure stability.
Normblock pumps
- Capacity: Up to 250 m³/h | Lifting height: Up to 30 mvs.
- Material: Selection available in PP or PVDF for chemical resistance.
Standard self-priming pumps
- Capacity: Up to 350 m³/h | Lifting height: Up to 30 mvs.
- Feature: Designed to handle particles and maintain prime in utility services.
Series ZPJ & ZPG (long shaft vertical pump)
- Capacity: Up to 160 m³/h | Lifting height: Up to 400 mvs.
- Focus: High-head water supply and deep well applications.
Series ZPJ & ZPG (Vertical turbine pumps)
- Capacity: Up to 160 m³/h | Lifting height: Up to 400 mvs.
- Focus: High-head water supply and deep well applications.

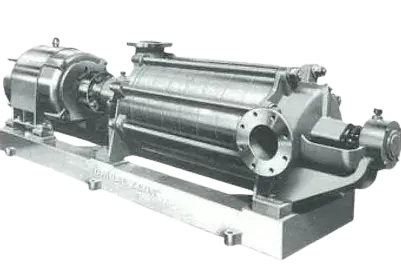

Multistage centrifugal pump (Industrial series)
- Capacity: Up to 1500 m³/h | Lifting height: Up to 350 mvs.
- Applications: Pressure boosting, chemicals, hot water, and petroleum products.
- Durability: Hydraulically and statically balanced impellers that can handle contaminants.

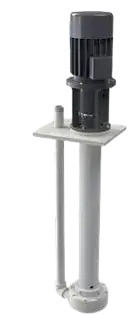

Vertical horizontal pump MB (Thermoplastic)
- Capacity: Up to 75 m³/h | Lifting height: Up to 35 mvs.
- Seal: New generation "Self-locking" mechanical bellows seal in Silicon Carbide.
Vertical centrifugal pump IM (Thermoplastic)
- Capacity: Up to 75 m³/h | Lifting height: Up to 35 mvs.
- Material: Selection of PP or PVDF for aggressive particle handling.
Mobile & stationary fire pumps
- Power: Diesel-powered and electric-powered configurations.
- Compliance: Fully engineered to NFPA 20, UL, FM Global, LPCB, and EN 12845 regulations.
- Scope: National and international safety standards for industrial and public works.

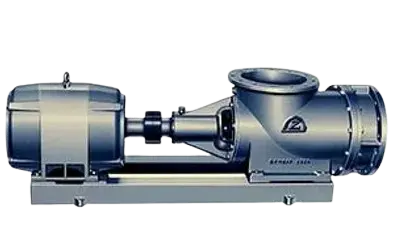

Propeller pumps applications
Large supplies, power changes, industry, fisheries, clean liquids or lightly loaded.
- Materials: Standard cast iron production. The alternative can be made completely or partially in bronze, stainless steel, etc. Motors IP-55, IP-23. Standardized IEC
- Details:Speeds between 750 and 1800 rpm. Sealing with mechanical seal or soft packed gland. Runs horizontal and vertical output below or above main board. Flanges DIN-2532 PN-10. Requirements ASI 150 Lb. Clockwise rotation viewed from coupling.
Vertical centrifugal In-Line pumps
Vertical multistage centrifugal pumps from the IN-VB series are non-self-priming high-pressure pumps characterised by high efficiency and durability. Wetted parts are made of AISI 304 or AISI 316 L stainless steel. The three-phase motors of ≥ 0.75 kW correspond to the energy efficiency class IE3.
- Application: Pressure boosting units > Water treatment > Irrigation > Fire extinguishing systems > Cooling water supply
- Design: Equipped with ceramic, wear-resistant, liquid lubricated bearings. Shaft seal in the form of a mechanical seal. The pump has CE approval and complies with the latest safety regulations.
- Capacity: 3.30 m3/h
- Lifting height: 225 mvs
Horizontal centrifugal pumps
- Pump type: Self-priming pumps.
- Material selection: Selection of PP or PVDF for chemical resistance.
- Particle handling: Designed to handle particles with a new generation "Self-locking" mechanical bellows seal system.
- Seal components: Aisi 304 spring with sealing rings in SILICON CARBIDE + CERAMIC or SILICON CARBIDE + SILICON CARBIDE.
- Lip seal: Available in VITON® or EPDM.
Horizontal centrifugal pump /vertical
- Material: Material selection in PP / PVDF.
- Particle handling: Can handle particles with a Mechanical bellows seal (new generation "Self-locking" system).
- Seal components: Aisi 304 spring – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE.
- Lip seal: Lip seal: VITON® or EPDM.

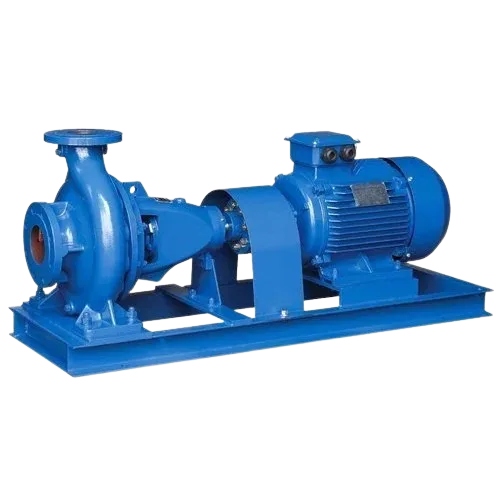

Single-channel centrifugal pumps
General supplies, irrigation, industry, painting, multiple services for pure or filled liquids.
Applications
- Applications: General utilities, irrigation, industry, paint booths, multiple services for clean or filled liquids.
- Materials: Material selection: Bronze, stainless steel 304 or 316.
- Impeller: Closed or hollow closed impeller.
- Motor: Motor type IP-55, IP-23, Atex, etc. Standard IEC.
- Speed: Speed 750 y 3,600 rpm.
- Flanges: Flange DIN-2532 PN-10 ó DIN-2533 DIN-PN16.
- Certification: ATEX certified.
